PANO-HEAD
A TRIPOD ATTACHMENT FOR USE WITH SLR CAMERAS





Pano Head 2PANO HEAD 2
A TRIPOD ATTACHMENT FOR USE WITH MOST CAMERAS

The Original Pano Head has been redesigned and is now available. It has been designed for use with most cameras, including Point & Shoot, SLR's, Digital and Medium Format for VR and Stitch programs etc. and is easy to use.

The Pano-Head 2 is designed to do assemblage type panorama photography by taking consecutive photos in such a precision manner that the photos will match up, into one long panorama photo after processing and splicing.

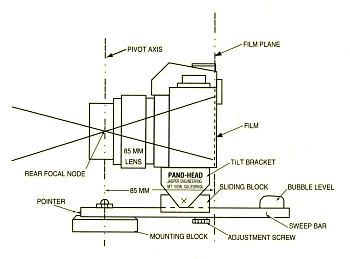

The principle here is to pivot the camera on the rear focal node of the lens. This point would be the same as the focal length of the lens you are using. Because of the spherical nature of the camera lens there is optical distortion in each picture. By allowing the photos to overlap and cutting through both pictures simultaneously this distortion is canceled out and the photos will then match up end to end and assemble into one long panorama photo.

The Pano Head 2 is versatile and can be be used with a wide variety of cameras. Older cameras, cameras you may purchase in the future or you may want to lend it to a friend or colleague.

The Pano Head 2 is an upscale version of the original Pano Head which was introduced in 1985. It is larger in construction and has more added features.

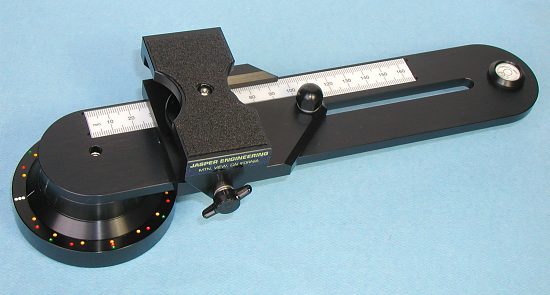

Pano Head 2The Pano Head allows you to mount your camera in the Horizontal or Vertical position (Vertical Bracket included) and has a Tilt Bracket that allows you to adjust to the horizon and still "Pan Level". You always have to pan level, but you can tilt your camera up or down. A Bubble Level is on the Bar for easy leveling.

The Pano Head 2 is 3 inches wide at the Base and is 10.5 inches long.

The Sliding Mechanism which allows you to pivot your camera over the rear focal node adjusts from 5 mm to 160 mm.

The Vertical Mounting Bracket has a "left-right" movement, 86 mm, so you can put the centerline of your lens on the centerline of the Pano Head Sweep Bar.

A series of color coded detents(click stops) are on the Pano Head 2 Base Block for quick and easy spacing. They are as follows:

Green Dots 8 Spaces 45 Degrees Each
Red Dots 12 Spaces 30 Degrees Each
Yellow Dots 16 Spaces 22.5 Degrees Each




Features
  • Shoot 360 and beyond
  • Color Coded Click Stops
  • Adjustable for use with 5 mm to 160 mm lenses
  • Camera mounts Horizontally or Vertically
  • Tilt Bracket - adjusts to the horizon
  • Shoot uphill or downhill
  • Vertical Bracket adjusts to 86 mm
  • Bulls Eye Bubble Level
  • Solid 6061 Aluminum Construction
  • Black Anodized Finish with recessed scale
  • Instructions included
  • Made in the USA
    $229.00(plus S&H and applicable sales tax)




Technique
Attach the Pano-Head to your tripod. Using the kant levers, or by adjusting the legs on your tripod make the bubble level read level as you sweep around 360°. You must always pan level!

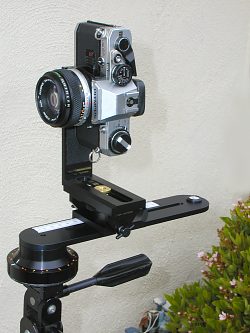

Mount your camera on the Tilt Bracket for a horizontal pan. To use your camera in the vertical format attach the Vertical Mounting Bar to the side of the Tilt Bracket. Adjust the Sliding Block along the Sweep Bar so that the "Film Plane" or back of the camera is over the engraved line that corresponds to the focal length of the lens you're using.

Go through a "dry run" by looking through the viewfinder and count the number of photos it will take to complete your panorama scene. Be sure there's enough film in the camera! Allow photos to overlap by at least a ¼ inch / 6 mm in the viewfinder. Using the engraved Dots & Pointer on the front of the Sweep Bar, select a series of dots that will give you an equal and sufficient amount of overlap for each picture in the panorama. The engraved dots, spaced every 30° apart, are to be used as an aid in spacing whenever suitable to the angle of view of your lens. Every lens has a different angle of view. The angle of view also changes when you mount the camera in the vertical position. It's best for you to choose the spacing that fits your need at the moment.

An easy and less technical and accurate method for correct overlap with any lens is to start from the left of your pan, looking through your viewfinder in the first picture select a prominent point of reference on the RIGHT side of the scene ¼" in from the edge. After taking the shot sweep the camera so that the same point of reference in photo #1 is now ¼" from the edge on the LEFT side of photo #2. Again, pick a prominent point on the RIGHT side of photo #2 and sweep the camera for shot #3 placing the prominent point in photo #2 on the LEFT side of shot #3. Continue this overlap procedure throughout the panorama scene.

All horizons are not perfectly straight ahead. You may have to adjust the Tilt Bracket up for tall trees, buildings, rock monuments and down for canyons and city panos taken from hilltops. Tilt the Tilt Bracket and camera as necessary. Once the focus & bracket tilt are set they both have to remain in the same position throughout the pan. After processing, the photos shot "uphill" or "downhill" will arc up or down after splicing. Sometimes this makes for a more dramatic picture after mounting. Splicing details are explained in the "splicing" section of these instructions.

As with all photography your lighting is important. Your Panos' will turn out best when your light is even and coming from behind you. Avoid panning near or into the sun, as these photos will wash out after processing and will be difficult to match up with other pictures in the pan.

The scenes you photograph with the Pano-Head can be very satisfying when there are only two or three frames in length. The average is six frames - 50 mm horizontal and eight frames - 50 mm vertical. Remember the short format.

When you have a prominent object or building in the pano, plan your spacing and overlap so that the main point of interest is in the center of a full frame and not in the overlap area. A moving subject in the center of the frame is OK because your camera will stop the action. However, moving subjects in the overlap area will not be in the next photo, after splicing only half the moving subject will be there. At times moving subjects can work in your favor and be fun to photograph, such as a boat going through the harbor where the boat is in the center of each frame and the background matches up into one long pano at the same time. Other subjects: People jogging, aircraft taking off, people, children & pets at play. Having them move into each frame would add to the novelty and interest of the entire pano.




Splicing Instructions
Allow at least ¼ inch, or more, overlap on each picture during the taking of the panorama scene. After processing, overlap the photos and align by eye as close as possible, paying attention to the central area. Using Scotch Transparent Tape, place a small piece at the top and the bottom and a long piece along the front and back . Using a scale or rule measure the overlap at the top and put a mark on the tape ½ the amount of the overlap. Repeat for the bottom overlap. Using a paper cutter or straight edge & sharp knife, cut through both pictures at the marked points. Remove the tape and place photos together.

As an uphill or downhill panorama will have a tendency to arc, the overlap points on the photos will be lesser at the top on down panos and lesser at the bottom on an uphill pano. Be sure there is enough overlap to allow for this condition.

Before mounting your photos after splicing, you may want to color the matching edges using "Pentel Color Pens" which will reduce the noticeability of the spliced edge.


Jasper Engineering Jasper Engineering
Tim Chervenak
1240 A Pear Avenue
Mountain View, CA 94043
Phone +1 (650) 967-1578
E-Mail: Jasper31@att.net


Member of the National Stereoscopic Association and the Photographic Society of America
