Slide Mounts
Realist, 1/2-frame & European Formats
Reel 3-D Enterprises, Inc., P.O. Box 2368, Culver City, CA 90231, USA

*** VERY IMPORTANT ANNOUNCEMENT ***
*** Reel 3-D is Closing on April 2, 2004 ***


Click here for more information on Reel 3-D Closing on April 2, 2004!


Inexpensive Stereo Heat-Seal Mounts
No. 4600
  • Realist-format cardboard mounts 1 5/8" x 4" (41mm x 101mm)
  • Our lowest priced, most popular, and best value mounts
  • Has die-stamped film placement guides for ease-of-use
  • May be tape bound or heat-sealed with warm iron
  • Instructions are included with every order
  • Made of custom cardboard stock, with very clean aperture windows
No. 4600 100 mounts
No. 4600A box of 1,250 mounts

"European Format" Cardboard Stereo Heat-Seal Mounts
No. 4828

New! No. 4828 "European Format" Cardboard HEAT-SEAL stereo mounts are FINALLY available!!

  • 41mm x 101mm outside dimensions
  • 23mm x 28mm Film Apertures
  • 62.0mm center-to-center distance

For 7-Perf "European" Format Stereo Cameras (Belplasca, Verascope f40, Fed Stereo) these new CARDBOARD HEAT SEAL mounts offer a winning combination of low price, high quality and accuracy. The yellow heat-activated adhesive layer forms a film placement guide area to aid in mounting your film accurately, and a split on one side of the mount allows mounting one half at a time for easier sealing. Comes with a easy-to-understand instruction sheet. May also be used for masking down full-frame stereo pairs into a single stereo mount for compatibility in stereo viewers made for the 1 5/8" x 4" (41mm x 101mm) format. Minimum order 300 slide mounts. Sold in groups of 300 mounts.

No. 4828

Indefinitely Out of Stock!
We Recommend No. 2328 as a Substitute!

"Plain Wrap" Stereo Glass
No. 2503
No. 2503 200 pieces
No. 2504 100 pieces

Universal Foldovers
No. 2130
  • Provides stiff outer binding OVER ALL 1 5/8" x 4" (41mm x 101mm) aluminum stereo masks.
  • Sturdy 6-ply cardboard construction
  • Easy-to-use: simply fold over any mask and tape across top to finish
No. 2130 50 pieces
No. 2130A 100 pieces
No. 2130B 1,000 pieces

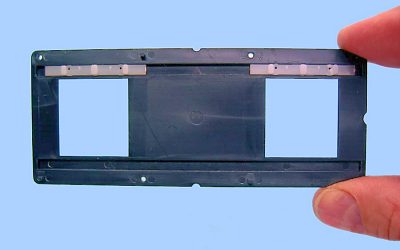

RBT Plastic Stereo Mounts

RBT Stereo Slide Mounts are the best stereo mounts currently available. These new snap-together plastic mounts are precision designed and made in Germany, and represent the first real innovation in 3D slide mounts since the 1950's.

RBT MountQuality features are:

  • All plastic snap-together design.
  • 6 Aperture sizes!
  • Re-useable, and easy to use.
  • No heat, glue, or tape needed.
  • Adjustable pin bars engage film sprockets for easy alignment.

RBT MountThe film aperture is part of the mount, so "window" placement in relation to the mount edges is ALWAYS EXACTLY the same. Perfect for DISSOLVE projection alignment.

Sprocket pin bars, hold the film in place and slide within tracks in the mount for easy, yet precision, horizontal adjustment of the film chips. By changing the positions of the pin bars this design also allows for vertical adjustment of the right and left film chips, in relation to each other, in 5 increments from 0.0mm to 0.4mm.

Each mount has one white side, which faces the projection lamp in the projector, to reduce heat absorption, and a black side, which faces the projection lens, to reduce internal reflection. The precision, clean, square-edged windows look impressive in hand viewers, too! Each side of the mount is identical, except for color.

RBT MountThe mount design holds film very flat without the use of glass. It allows the film chip to expand when exposed to the heat of a projector. This virtually eliminates the change of focus due to "popping" (change in the curve of film in the mount when heated).

All mounts have the (ASA Standard) outer dimensions of 1 5/8" x 4" (41mm x 101mm), thickness of 3mm, and aperture center-to-center spacing of 62mm EXACTLY! This means that different aperture masks may be mixed in a single stereo projector show, without the need to make horizontal adjustments from slide to slide*)
* assuming correct mounting, correct shooting parameters, and evenly exposed subject material.

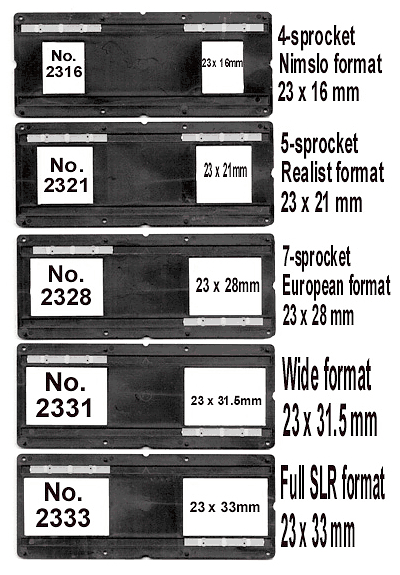

Five different aperture sizes are available!

RBT Slide Mount SizesThe available sizes are:

No. 2316 - RBT 4 - Nimslo format 21 x 16mm apertures (for half-frame, Nimslo, Nishika, and most of the 3 & 4 lens cameras made originally for lenticular prints)

No. 2319 - RBT 5CU - (Not shown at right) Close-Up Realist format 23 x 19.5mm apertures (for Stereo Realist, Kodak Stereo, Revere, Wollensak, TDC and most American Stereo 35mm cameras of the 1950s that use the 5- perf format). This has an aperture that is 1.5mm narrower than the No. 2321 to allow for more "stereo window" adjustment, or for minor cropping. In the old Stereo Realist and EMDE aluminum mask terminology this was called the Close-Up mask, when you are shooting with a stereo camera and your subject is in the 4 to 7 foot range. Also for minor cropping of any 5 perf slide.

No. 2321 - RBT 5 - Realist format 23 x 21mm apertures (for Stereo Realist, Kodak Stereo, Revere, Wollensak, TDC and most American Stereo 35mm cameras of the 1950s that use the 5- perf format.)

No. 2328 - RBT 7 - European format 23 x 28mm apertures (for Iloca I, Verascope F40, Belplasca, Fed Stereo & any 7 perforation "European Format" camera.) Also useful for masking down full-frame 35mm format stereo pairs from twin camera stereo rigs, and RBT stereo cameras.

No. 2331 - RBT W - Wide format 23 x 31.5mm apertures. For full-frame 35mm format stereo pairs from twin camera stereo rigs, and RBT stereo cameras. The slightly smaller than full-frame aperture allows for aesthetic masking, or for more "stereo window" adjustment room than the wider No. 2333 mount.

No. 2333 - RBT F - Full SLR format 23 x 33mm. For full-frame 35mm format stereo pairs from twin camera stereo rigs, and RBT stereo cameras. This aperture is nearly the same as most commercial 2-D cardboard 35mm slide mounts. It is the widest aperture available in a single piece stereo mount with these outer dimensions. Use when the most possible image area is desired, and images are taken in such a way that proper stereo windowing is possible. Note that with twin-camera rigs, and for closer distances with RBT cameras, the narrower No. 2331 mount may allow for more "stereo window" adjustment than the No. 2333.

RBT MOUNTS Price List
(all sizes are sold in boxes of 50 mounts)

Easy-to-follow RBT 3-D Slide Mounting Instructions included on every box lid.

RBT Price Group 1RBT Price Group 1Price Group 1

if you are ordering
1 box ONLY
in the
current order

No. 2316 RBT 4
Nimslo format 21 x 16mm

No. 2319 RBT 5CU
Close-Up Realist format 23 x 19.5mm

No. 2328 RBT 7
European format 23 x 28mm

No. 2331 RBT W
Wide format 23 x 31.5mm

No. 2333 RBT F
Full SLR format 23 x 33mm


RBT Price Group 2RBT Price Group 2Price Group 2

if you are ordering
2, 3 or 4 boxes
in the
current order.

Any combination of sizes
but there must be full
boxes of 50 in the
combination

No. 2316A RBT 4
Nimslo format 21 x 16mm

No. 2319A RBT 5CU
Close-Up Realist format 23 x 19.5mm

No. 2328A RBT 7
European format 23 x 28mm

No. 2331A RBT W
Wide format 23 x 31.5mm

No. 2333A RBT F
Full SLR format 23 x 33mm


RBT Price Group 3RBT Price Group 3Price Group 3

if you are ordering
5 to 9 boxes
in the
current order.

Any combination of sizes
but there must be full
boxes of 50 in the
combination

No. 2316B RBT 4
Nimslo format 21 x 16mm

No. 2319B RBT 5CU
Close-Up Realist format 23 x 19.5mm

No. 2328B RBT 7
European format 23 x 28mm

No. 2331B RBT W
Wide format 23 x 31.5mm

No. 2333B

RBT F
Full SLR format 23 x 33mm



RBT Price Group 4RBT Price Group 4Price Group 4

if you are ordering
10 or more boxes
in the
current order.

Any combination of sizes
but there must be full
boxes of 50 in the
combination

No. 2316C RBT 4
Nimslo format 21 x 16mm

No. 2319C RBT 5CU
Close-Up Realist format 23 x 19.5mm

No. 2328C RBT 7
European format 23 x 28mm

No. 2331C RBT W
Wide format 23 x 31.5mm

No. 2333C RBT F
Full SLR format 23 x 33mm


Slip-in Half-Frame Stereo Mounts
No. 4716
  • For Nimslo, Nishika, 3D Wizard, Beam Splitter, & vertical half-frame formats.
  • Easy-to-use: no glue, tape, or heat needed - just slip into half-frame size pockets
  • 1 5/8" x 4" (41mm x 101mm) outer dimensions - compatible with Realist format viewers and projectors
  • 50 cardboard mounts per package. Instructions included with every order
No. 4716

Indefinitely Out of Stock!
We Recommend No. 2316 as a Substitute!

Slip-in Realist Format Stereo Mounts
No. 4722
  • For all Stereo Realist format cameras
  • Easy-to-use: no glue, tape, or heat needed - just slip into Realist-format pockets
  • 1 5/8" x 4" (41mm x 101mm) outer dimensions - fits all Realist format viewers and projectors
  • 50 cardboard mounts per package. Instructions included with every order

Sorry, we are Indefinitely Out-Of-Stock!
No. 4722 50 pieces
No. 4722A 1,000 pieces

Slip-in European Size Stereo Mounts
No. 4728
  • For European format 7-sprocket cameras:

  • Busch Verascope F 40, Belplasca, Iloca 1, Fed or for cropping 2" x 2" slides
  • Easy-to-use: no glue, tape, or heat needed - just slip film into pockets
  • 1 5/8" x 4" (41mm x 101mm) outer dimensions - fits all Realist format viewers and projectors opened up for European format.
  • 50 cardboard mounts per package. Instructions included with every order
Sorry, we are Indefinitely Out-Of-Stock!
No. 4728 50 pieces
No. 4728A 1,000 pieces


Back to the Reel 3-D Enterprises Homepage

Order by phone at (310) 837-2368, or by fax at (310) 558-1653
or write to:
Reel 3-D Enterprises, Inc.
P.O. Box 2368
Culver City, CA 90231
United States of America
E-Mail: Reel3D@aol.com

Yes, we accept American Express, Discover, JCB, VISA and MasterCard! Credit Cards Welcome. No order minimum, but minimum shipping and handling applies.
