Jasper Engineering: Photo Tools


Single Vertical Mount

Screw height from base is 5" (127 mm) Mount is 7.38" high x 1.5" wide x 2.38" at the base (187.50 mm x 38 mm x 60.50 mm)

NOTE: the photo below shows two views for clarity only.

Single Vertical Mount
$47.50 (plus S&H and applicable sales tax)
Price for one Mount - photo above shows two for clarity only!

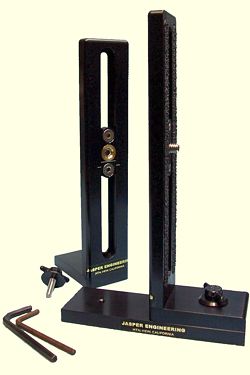

Adjustable - Twin Vertical Mount

These brackets have a moveable mounting screw, to compensate for the offset of the mounting screw hole from centerline of the camera's lens in some cameras. The various mounting options are the same as those for the "Fixed Mounts" as described above.

Adjustable Twin Vertical Mount
$145.00 (plus S&H and applicable sales tax)

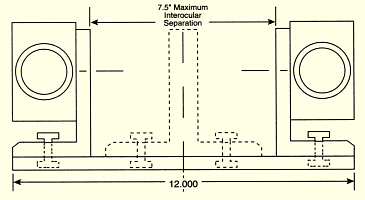

Interocular Bar - For Spacial Control

All mounts adapt to this bar and can give you an adjustable interocular separation of a maximum of 7.5" (19.05 cm) after your cameras have been mounted on the vertical brackets. The Interocular Bar is 12" (30.48 cm) long, 1.750" (4.45 cm) wide and .375" (0.95 cm) thick and is sold separately.

Please note: The Cameras and Brackets
are for demonstration purposes only!
$69.00 (plus S&H and applicable sales tax)

Jasper Engineering Jasper Engineering
Tim Chervenak
1240 A Pear Avenue
Mountain View, CA 94043
Phone +1 (650) 967-1578
E-Mail: Jasper31@att.net

Member of the National Stereoscopic Association and the Photographic Society of America
